您现在的位置是：首页 >> 产品中心 >> Cejn 310系列标准品

Cejn 310系列标准品

< >

Cejn 310系列标准品

Cejn 310系列标准品

颜色：黄铜/钢镀锌/ 镀锌淬硬钢
温度：-20~+100
软管用途：

产品详细PDF下载:

产品资料PDF下载

if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; } if($k%$maxcount==0) { echo ""; }

产品编号	型号	内径 mm	工作压力 bar	价格元/个	数量米/卷

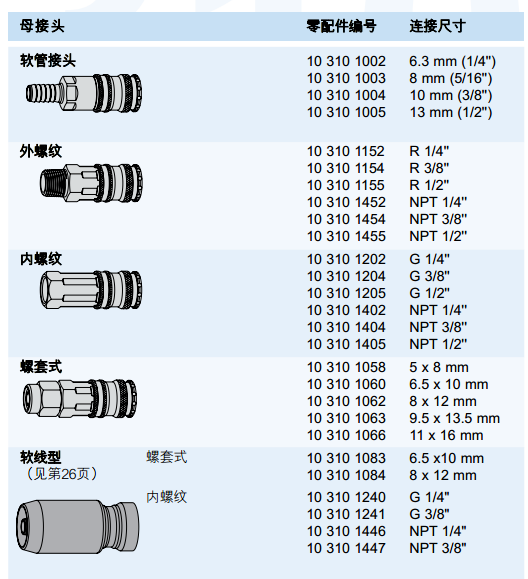

103101002
7/32
5.3
16


103101003
7/32
5.3
16


103101004
7/32
5.3
16


103101005
7/32
5.3
16


103101152
7/32
5.3
16


10 310 1154
7/32
5.3
16


10 310 1155
7/32
5.3
16


10 310 1452
7/32
5.3
16


10 310 1454
7/32
5.3
16


10 310 1455
7/32
5.3
16


10 310 1202
7/32
5.3
16


10 310 1204
7/32
5.3
16


10 310 1205
7/32
5.3
16


10 310 1402
7/32
5.3
16


10 310 1404
7/32
5.3
16


10 310 1405
7/32
5.3
16


10 310 1058
7/32
5.3
16


10 310 1060
7/32
5.3
16


10 310 1062
7/32
5.3
16


10 310 1063
7/32
5.3
16


10 310 1066
7/32
5.3
16


10 310 1083
7/32
5.3
16


10 310 1084
7/32
5.3
16


10 310 1240
7/32
5.3
16


10 310 1241
7/32
5.3
16


10 310 1446
7/32
5.3
16


10 310 1447
7/32
5.3
16

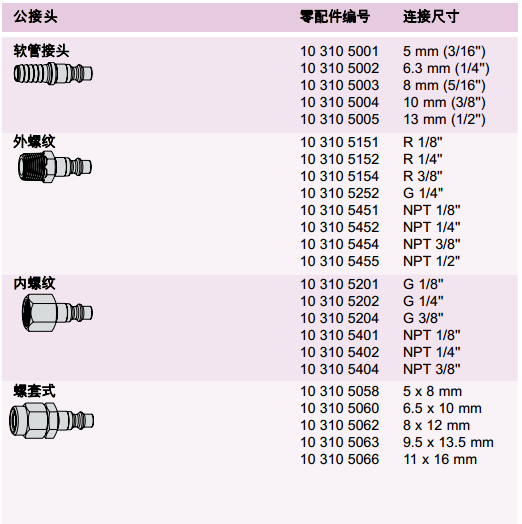

10 310 5001
7/32
5.3
16


10 310 5002
7/32
5.3
16


10 310 5003
7/32
5.3
16


10 310 5004
7/32
5.3
16


10 310 5005
7/32
5.3
16


10 310 5151
7/32
5.3
16


10 310 5152
7/32
5.3
16


10 310 5154
7/32
5.3
16


10 310 5252
7/32
5.3
16


10 310 5451
7/32
5.3
16


10 310 5452
7/32
5.3
16


10 310 5454
7/32
5.3
16


10 310 5455
7/32
5.3
16


10 310 5201
7/32
5.3
16


10 310 5202
7/32
5.3
16


10 310 5204
7/32
5.3
16


10 310 5401
7/32
5.3
16


10 310 5402
7/32
5.3
16


10 310 5404
7/32
5.3
16


10 310 5058
7/32
5.3
16


10 310 5060
7/32
5.3
16


10 310 5062
7/32
5.3
16


10 310 5063
7/32
5.3
16


10 310 5066
7/32
5.3
16

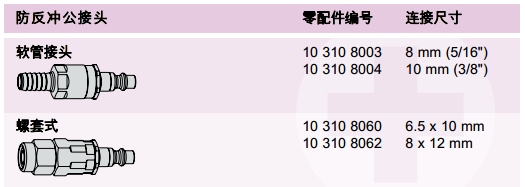

10 310 8003
7/32
5.3
16


10 310 8004
7/32
5.3
16


10 310 8060
7/32
5.3
16


10 310 8062
7/32
5.3
16

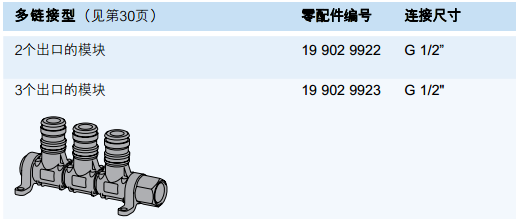

19 902 9922
7/32
5.3
16


19 902 9923
7/32
5.3
16


19 902 9942
7/32
5.3
16


19 902 9943
7/32
5.3
16

-流量高

-单手操作

-低连接力

310系列针对方便使用者紧握的气动接头，提供了宽广的产品范围。包括软线型，螺套式及多链接型。

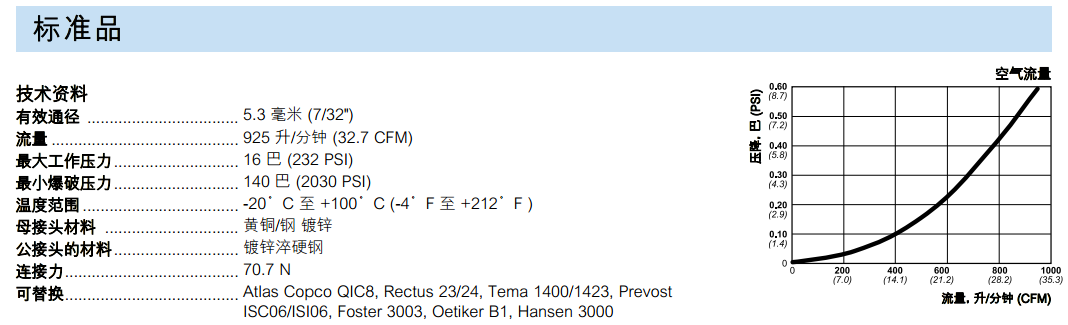

技术资料

有效通径..........5.3毫米（7/32）

流量..........925升/分钟（32.7FCM)

最大工作压力..........16巴（232PSI）

最小爆破压力..........140巴（2030PSI)

温度范围..........-20°C至+100°C(-4°F至+212°F)

母接头材料......黄铜/钢镀锌

公接头材料..........镀锌淬硬钢

连接力..........70.7N

可替换.........Atals Copco QIC8,Rectus 23/24，Tema 1400/1423,Prevost ISC06/ISI06,Foster 3003,Oetiker B1,Hansen 3000
